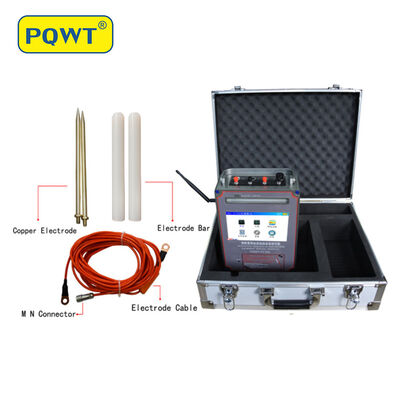

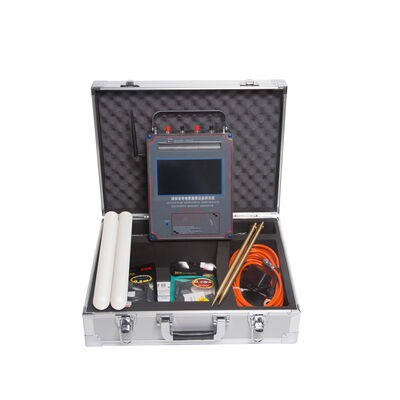

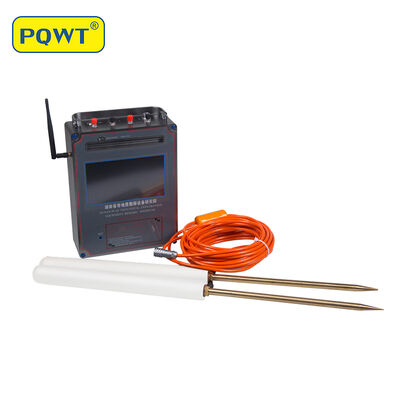

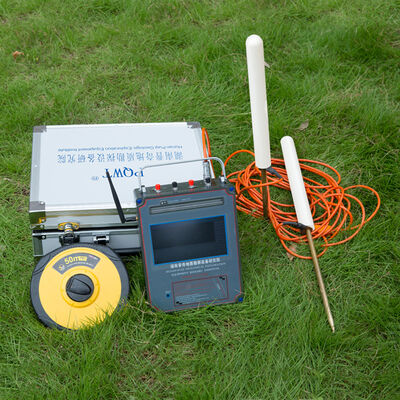

PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display

PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display
PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display

Großes Bild :  PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display

Produktdetails:
Herkunftsort: Hunan, China
Markenname: PQWT
Modellnummer: PQWT-TC700
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt

PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display

Beschreibung
Betriebsfrequenz: Mehrfrequenz Tiefe: 150/300/500/600 m
Genauigkeit: 0,001MV Anzeige: Lcd-Notenanzeige
Frequenz: Single Triple 68 Frequenz Erkennungstyp: Verfahren zur Auswahl der Frequenz des natürlichen elektrischen Feldes
Profilzuordnung: Kurvendiagramm automatisch zeichnen Kanal: 8
Speicherkapazität: Speichern Sie 999 Messliniendaten Messbereich: 0-2000MV
Material: Plastik Frequenztypen: Einzel, Dreifach, 20/40/56/68
Modellnummer: PQWT TC700 Erkennungsmethode: Methode des natürlichen elektrischen Feldes
Empfindlichkeit: Hoch
Hervorheben:

600m Depth Water Detector

,

Auto Mapping Underground Water Detector

,

LCD Touch Display Geophysical Survey Equipment

PQWT-TC700 Geophysical Survey Detection System
Auto-mapping deep underground borehole water well detector with 600m detection depth capability.
PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 0 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 1 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 2 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 3
Key Benefits
  • Find water sources before borewell drilling to save time and costs
  • Applicable to multiple and complex terrain exploration
  • Automatic on-site mapping with immediate results
  • Profile mapping displays aquifer locations and depths
  • Expert remote assistance for well location analysis
  • Easy operation - inexperienced users can learn in 5 minutes
  • Selectable detection depths according to project requirements
Product Overview
The PQWT TC700 deep underground water detector is engineered for high-accuracy detection at depths of 150, 300, 500, and 600 meters. This advanced system utilizes sensitive detection methods to identify optimal drilling locations, significantly reducing costs and time for deep water well drilling projects.
Technology & Methodology
This geophysical prospecting instrument employs natural electric field sources as its working mechanism. By measuring natural electric field components at different frequencies on the surface, it detects resistivity contrasts between underground rocks, minerals, and groundwater. The system analyzes variations in geological bodies to identify anomalies and solve geological challenges through electrical prospecting methods.
PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 4 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 5 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 6 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 7 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 8 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 9
Technical Specifications
Warranty 2 years
Type PQWT Deep Underground Water Detector
Certification ISO9001
Customized Support OEM, LOGO, Package
Place of Origin China
Brand Name PQWT
Model Number PQWT TC700
Detection Depth 150m/300m/500m/600m
Frequency Single, triple, 20/40/56/68
Measurement Range 0-2000mV
Packaging & Delivery
PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 10 PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 11
Aluminum specialized flight case + strong carton + corner guard protection
Manufacturer Profile
Hunan Puqi Geologic Exploration Equipment Institute is a leading Chinese institution specializing in R&D, manufacturing, and sales of geological exploration equipment. With over 200 staff including 16 senior engineers and 49 intermediate engineers, Puqi focuses on hydrogeological exploration, intelligent data-capture technology, and specialized technical applications. The company has completed more than 65 major research projects and holds over 117 national patents, establishing long-term cooperation with research institutes worldwide.
PQWT-TC700 600m Depth Underground Water Detector with Auto Mapping and LCD Touch Display 12
Frequently Asked Questions
What payment methods do you support?
We support Wire Transfer, Western Union, Paypal, Alibaba orders, and more.
What shipment methods do you use and what is the delivery time?
We utilize DHL, FedEx, UPS, TNT, and EMS Air Express services. Delivery typically occurs within 7 working days.
What is your after-sales service policy?
All PQWT products include a 2-year guarantee with lifetime maintenance support. Contact our sales team for detailed service information.
I have other questions to consult.
Please contact our online sales team using the Chat Now feature or Send Inquiry option below. Your questions will receive prompt attention and response.
